FRAME
All New Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

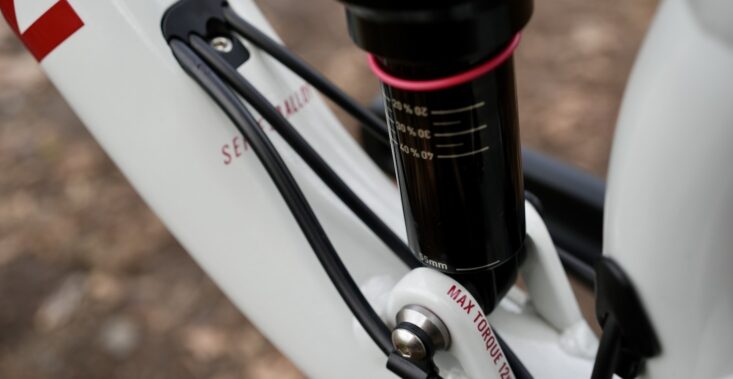

REAR SUSPENSION
RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware
RIMS
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
HUB, REAR
Forged Aluminum, 148x12mm, Centerlock Disc, 32H
HUB, FRONT
Forged Alloy, 110x15mm, Disc, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Vee Tire Co. Flow Snap 29x2.35", Tackee Compound, Tubeless Ready
DERAILLEUR, REAR
Shimano Deore, 12-Speed, SGS
DERAILLEUR, FRONT
SHIFT LEVER
Shimano Deore, 12-Speed, SL-M6100-R
CRANKSET
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET
External Sealed Cartridge Bearing
CHAIN
KMC X-12 Silver and Black
CASSETTE
SunRace 12-speed, 11-51
BRAKE, FRONT
Shimano MT-200 Hydraulic Disc, 180mm Rotor
BRAKE, REAR
Shimano MT-200 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS
Tektro HDM-535
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Grizzly Lock On
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
Bolt-On Thru-Axle
