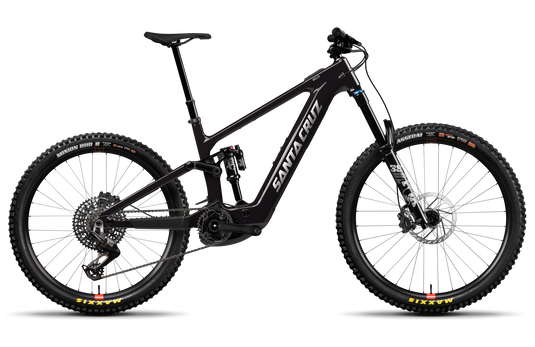

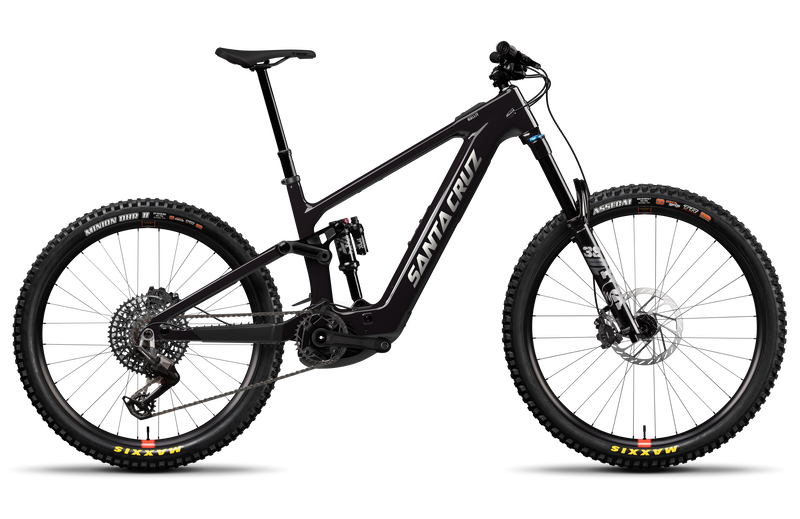

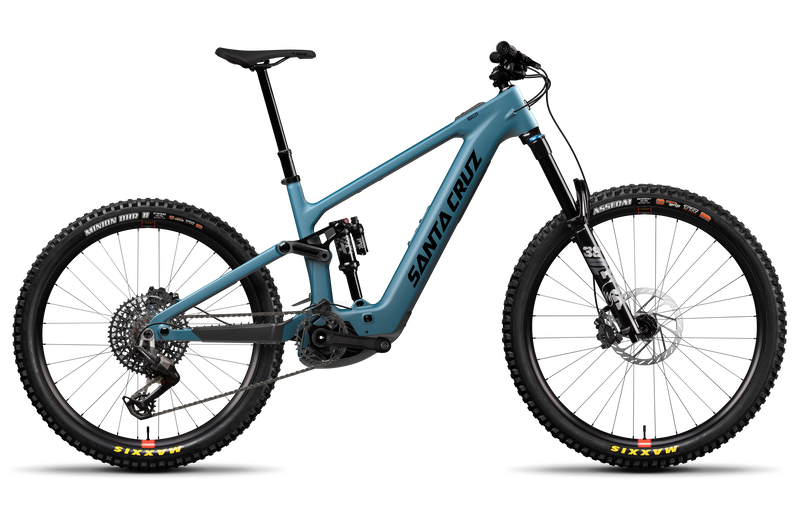

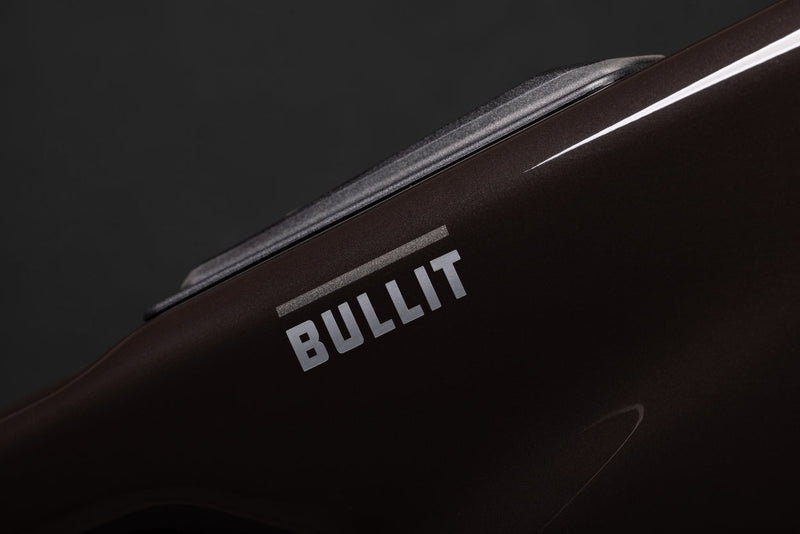

If you crave gravity-fed speed but want an extra push to summit the tallest peaks, the Santa Cruz Bullit 90 is your perfect match. Equipped with a Bosch Performance Line CX motor and 600 Wh battery, it effortlessly powers you to the highest drop-ins. Built tough with 170mm of travel front and rear, a durable Carbon C frame, and the latest SRAM 90 Eagle T-Type drivetrain, this is a big mountain, all-terrain e-bike that feels like having a downhill rig with a built-in chairlift.
Standout Features
- SRAM T-Type 90 Drivetrain
- C Carbon Frame
- 600 Wh Integrated Battery
- NEW Bosch Performance Line CX Drive Unit
- Four-bar Suspension System

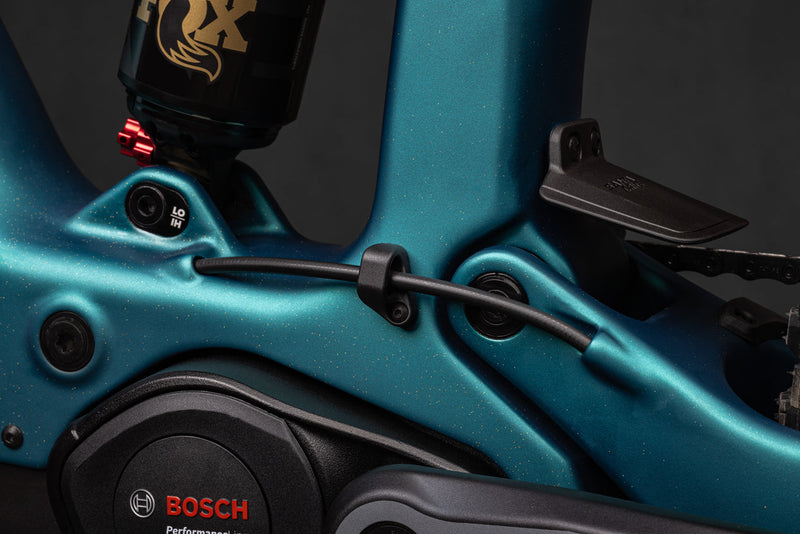

- Independent Geometry & Shock Rate Flip Chips
Frame
Material: Carbon C
Travel: 170mm Front / 170mm Rear
Wheel Size: MX
Suspension

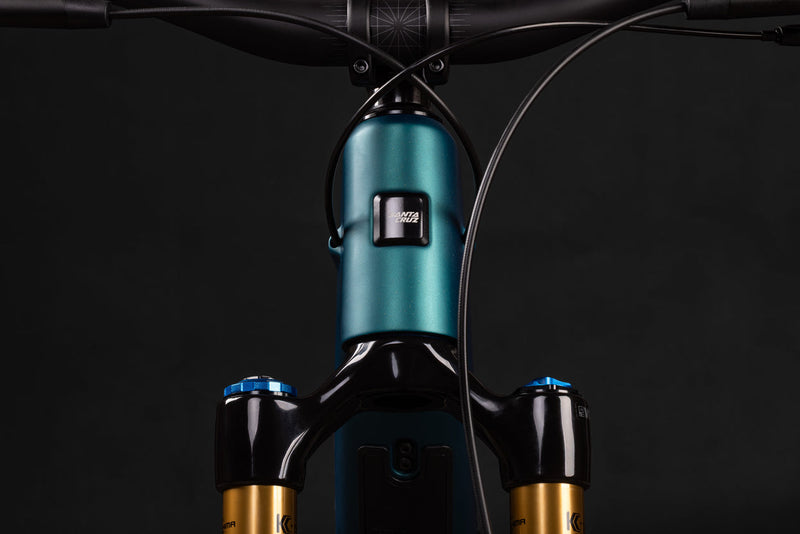

Fork: FOX 38 Float Performance, Grip, 170mm

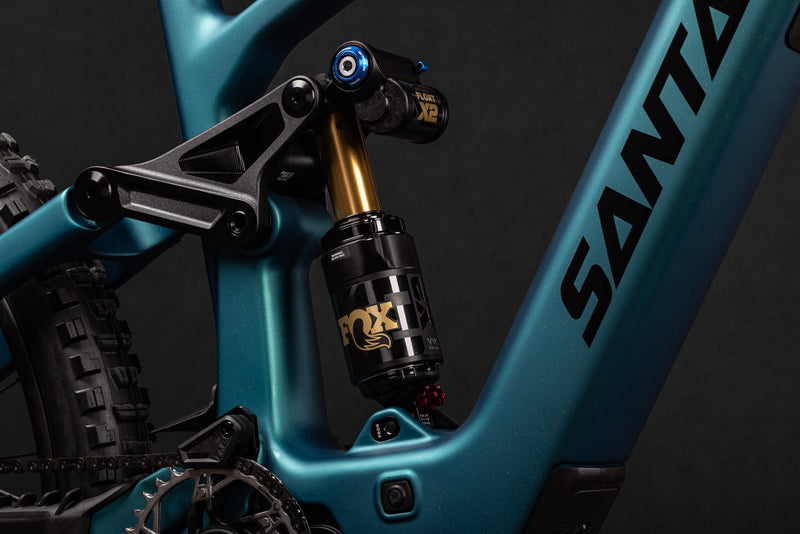

Rear Shock: FOX Float X Performance, 205x65
Drivetrain

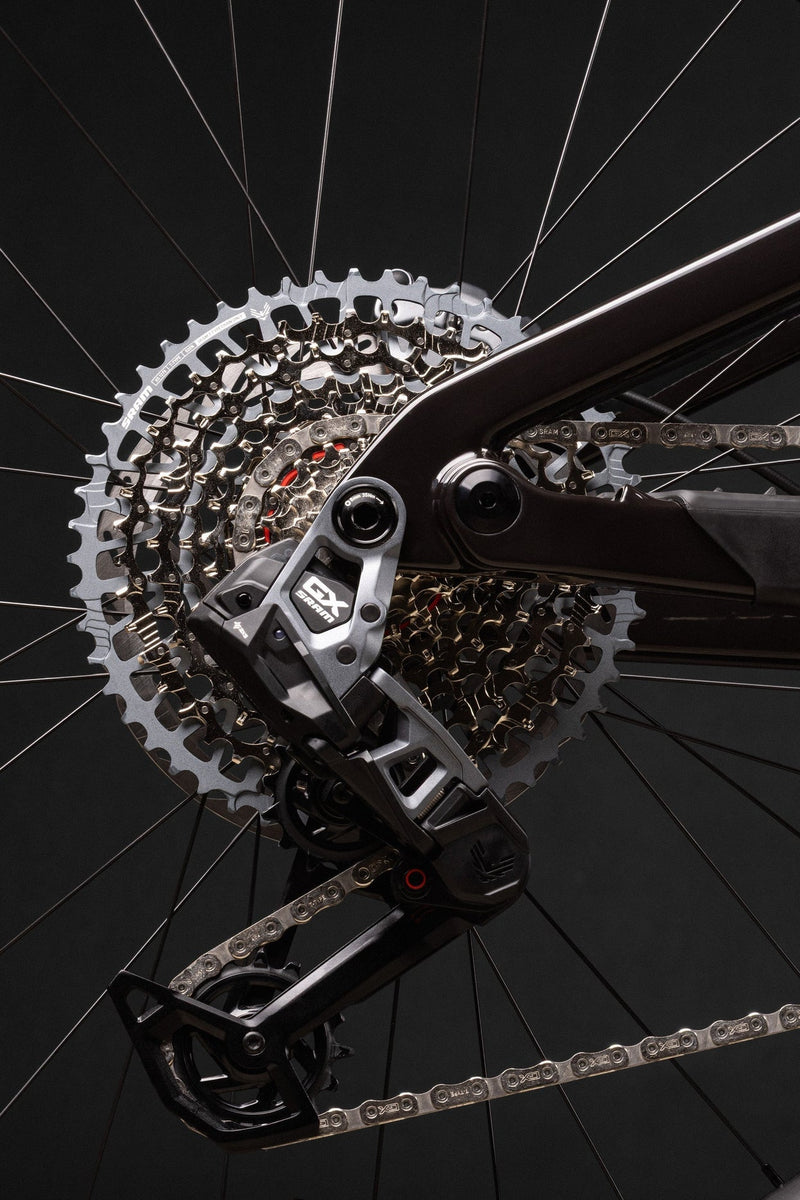

Cassette: SRAM XS 1275 Eagle T-Type, 10-52t
Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide: OneUp Chainguide
Crankset: E13 Helix eSpec, 155mm

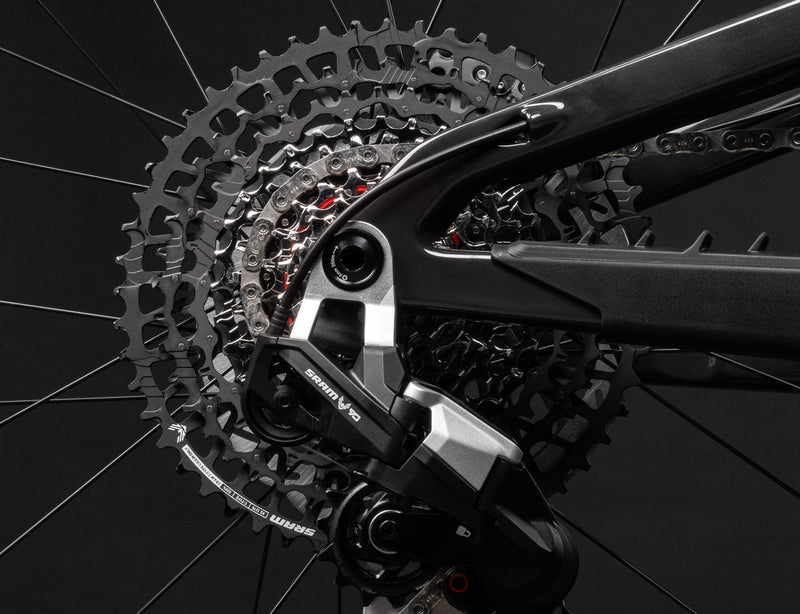

Rear Derailleur: SRAM 90 Eagle T-Type, 12spd
Shifter: SRAM 90 Eagle T-Type, Single Click, 12spd
Brakes
Brakes: SRAM Maven Base
Front Rotor: SRAM HS2, 200mm
Rear Rotor: SRAM HS2, 200mm
Cockpit
Grips: Santa Cruz Bicycles House Grips
Handlebars: OneUp Aluminum Bar, 35mm Rise, 800mm
Headset: FSA IS-2/47/42 ACB
Saddle: SDG Bel-Air V3 Max Lux-Alloy
Seatpost: OneUp Dropper Post, 31.6
Stem: OneUp Stem, 42mm
Wheels & Tires
Front Rim: Reserve 30|HD AL
Front Hub: E13 SL, 15x110, 6-Bolt, 32h
Front Tire: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Rear Rim: Reserve 30|HD AL
Rear Hub: E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Tire: Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, Double Down
E-Bike System

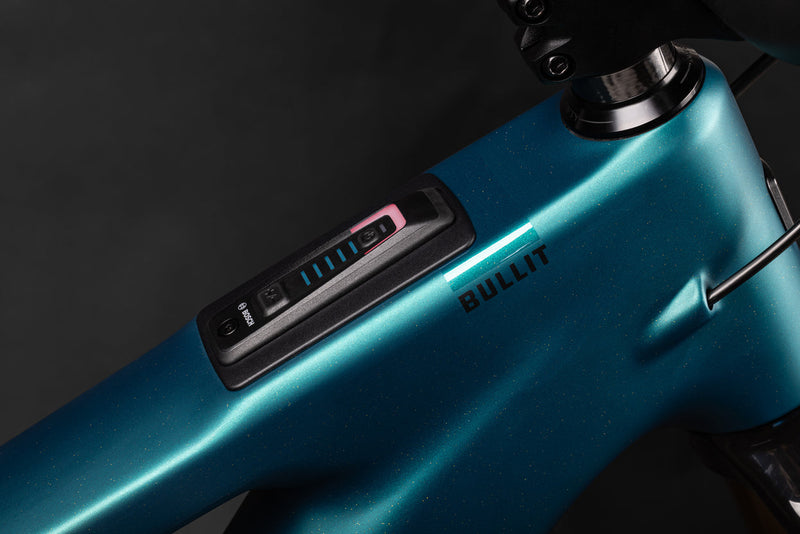

Battery: Bosch PowerTube Battery 600Wh

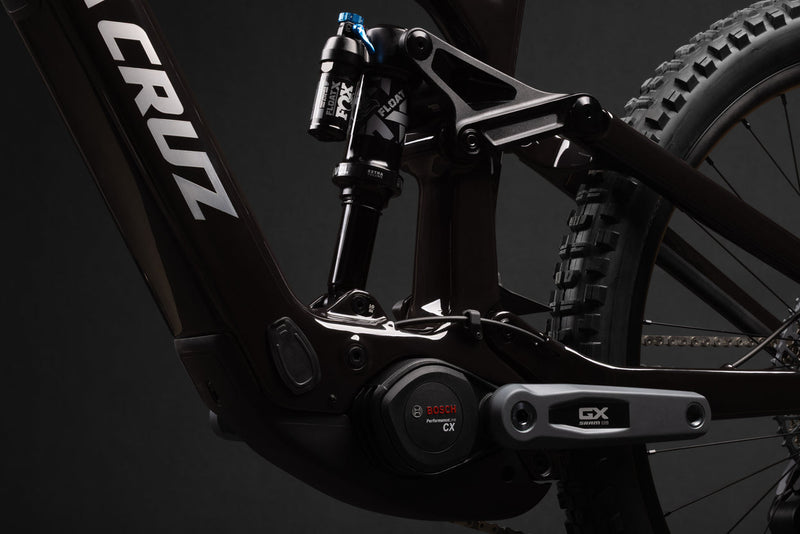

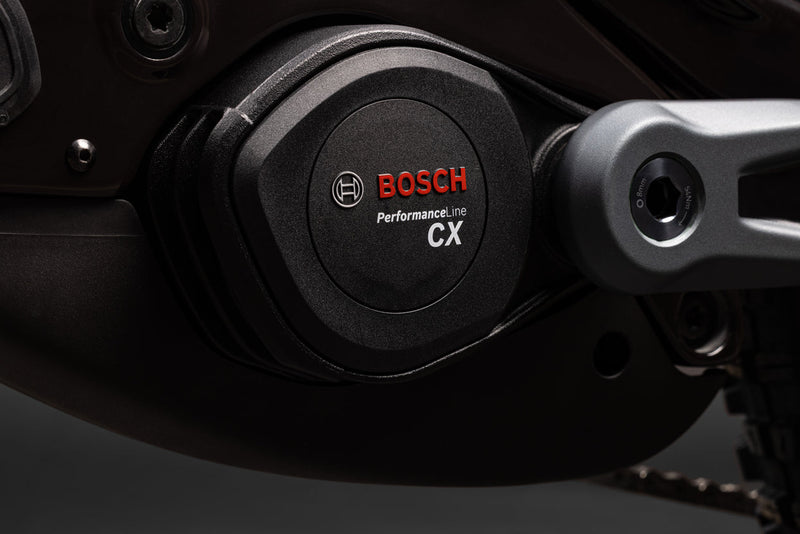

Drive Unit: Bosch Performance Line CX
Specifications
| Spec |
Detail |
| Frame Material |
Carbon C |
| Front Travel |
170mm |
| Rear Travel |
170mm |
| Fork |
FOX 38 Float Performance |
| Rear Shock |
FOX Float X Performance |
| Motor |
Bosch Performance Line CX |
| Battery |
600 Wh Integrated |
| Wheelset |
Reserve 30 |
| Front Tire |
Maxxis Assegai 29"x2.5" |
| Rear Tire |
Maxxis Minion DHRII 27.5"x2.5" |
| Brakes |
SRAM Maven Base |
| Drivetrain |
SRAM 90 Eagle T-Type 12spd |
| Weight |
49.42 lbs / 22.42 kg |
Size Guide
| Size |
Rider Height |
| Small |
5'1" – 5'5" |
| Medium |
5'5" – 5'9" |
| Large |
5'9" – 6'1" |
| X-Large |
6'0" – 6'4" |
| XX-Large |
6'4" – 6'7" |
